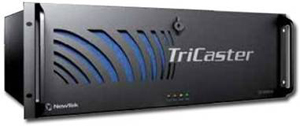

TriCaster™ TCXD850
Portable Live Production in HD/SD

Pricing: $24,995.00

TriCaster TCXD850 is designed to meet the most demanding HD production requirements. This 22-channel HD/SD live production switcher comes in a rack mount form factor, with redundant power and removable storage; eight external sources, eight virtual/mix channels; new live HD virtual sets and advanced matte generation; overlay with rotation, positioning and scaling in 3D plus animated effects; HD live streaming; increased media player capabilities, and multi-view monitoring of all inputs and outputs.

Powerful, yet true to the TriCaster tradition, the new TriCaster TCXD850 is easy to learn and use, with the flexibility for one person or a small team to deliver HD network-quality video.

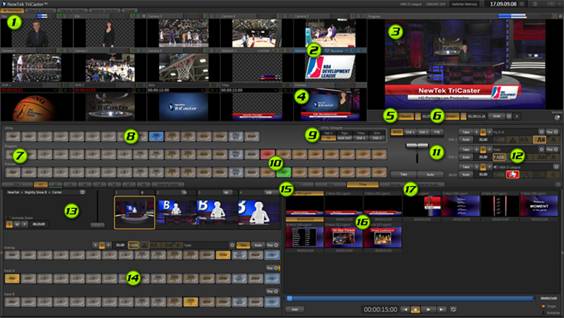

TriCaster™ TCXD850 Interface
The power to drive your production

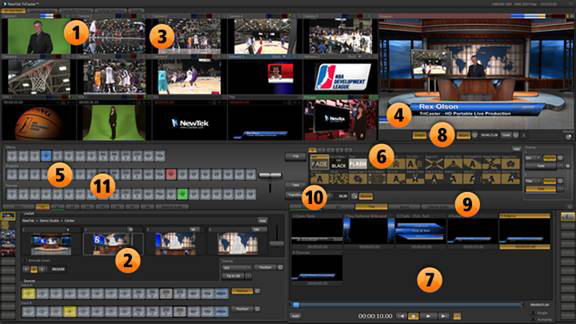

The TriCaster™ TCXD850 interface is set up much like the control room found in a live television truck. You have quick and easy access to virtual monitors and your live production tools, virtual sets, titling system, editing program, recording and streaming options and much more.

1) LIVE PRODUCTION provides control of an entire multi-channel HD production. Connect up to eight HD or standard definition (SD) cameras, digital or analog audio, and go live with simultaneous output to video, projector and the Web.

2) LIVE VIRTUAL SETS in HD give you the flexibility of expansive, professional sets even though your location may have limited space. With live, multi-camera smooth zooming, show your talent in a network-style studio without the need for a camera operator or expensive motion control system. Sets include double box effects with options for stand-up and one or two presenters.

3) ON-SCREEN MONITORS let you select shots with confidence. Displays include cameras, clips and iVGA™ networked computer inputs, along with the ability to send all monitors to a second display, and enlarge your workspace.

4) PREVIEW AND PROGRAM MONITORS let you display titles or a transition on-screen, while showing what source is up next. Innovative color Waveform Monitors and Vectorscopes ensure perfect signal quality for your live production.

5) ADVANCED VIDEO SWITCHER gives you unprecedented control over all inputs. Select a live output on Preview, and use either the on-screen T-bar or the optional LC-11 hardware to transition easily from one source to another. Versatile production tools such as Virtual Inputs and dual downstream keys provide the ability to easily create dynamic overlays and graphics.

6) VIDEO TRANSITIONS add interest and impact to your live production. Use any of the 200-plus HD broadcast-quality effects to transition from one source to another and fly titles and inserts on and off screen.

7) LIVE TITLES give you a broadcast look with graphics, titles and animated overlays on top of your live video. Lock a title or bug to a camera or virtual input and set the in and out motion for each.

8) ONE-BUTTON INTERNET STREAMING allows you to use Adobe® Flash® or Windows Media® to deliver a live stream directly to the Web, in 720p HD and other streaming profiles with simultaneous archive for later viewing. ONE BUTTON RECORDING captures your live production as a full HD resolution video file.

9) AUDIO MIXING gives you complete control over microphones, line inputs and clip playback levels. You can also adjust input trim levels for the best possible audio. In addition, the system provides both AES and embedded digital audio for pristine sound.

10) DIGITIAL MEDIA PLAYERS include two DDRs for video playback, titles, stills, music and sound, making it easy to add video clips and imagery to your production, as well as auto-insert clips captured during a live event for immediate playback. HD and SD resolutions are supplied in a variety of popular file formats.

11) VIRTUAL INPUTS provide eight customized inputs to configure virtual sets, layer live elements, assign titles, set upstream picture-in-picture elements and much more. These settings can be used as templates for easy creation of other mix effects, and are instantly available in the preset bin along the left.

TriCaster™ TCXD850 Benefits

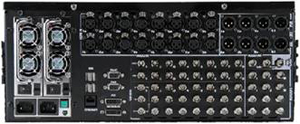

TriCaster TCXD850 at US$24,995 (Multi-standard US$27,995) is the latest addition to the NewTek HD portable live production family. This durable rack mount system provides the highest quality, 32-bit floating point with 4:4:4:4 video processing. TriCaster TCXD850 accepts video in all common video formats and sources, including HD-SDI, SDI, component, Y/C, or composite. Whether you work with a team or operate on your own, TriCaster TCXD850 is easy to learn and provides the following benefits:

• 22-channel switcher with eight HD-SDI or analog inputs, two DDRs, two network inputs, titles, stills and eight virtual/mix channels
• Five digital Media Players for video playback, titles, stills, music and sound
• Overlay with rotation, positioning and scaling in 3D plus animated effects
• Two network inputs deliver graphics from LiveText, presentations from a PC or Mac® using iVGA or other computer sources to the switcher or overlay channels
• Simultaneously monitor all switcher inputs at full field-rate and verify signal integrity with color Waveform/Vectorscopes
• Use any combination of either embedded digital, AES or the 16 balanced analog XLR audio inputs to bring in microphones, stereo or quad line level sources
• Audio mixing capabilities with audio follows video support and auxiliary routing to integrate into an external audio setup
• HDMI and VGA program outputs for projector (IMAG) or other monitoring applications
• 36 hours of 1080i recording capacity that can be extended by using the three removable drive bays
• Three video output rows provide flexible simultaneous HD and SD video output
• Durable rack mount 4U case with redundant power supply

TriCaster™ TCXD850 Specifications

1 Both digital (SDI) and analog video output connectors are active at all times.

• HD rows output HD-SDI and HD Component
• SD rows can be configured as “SDI + Component” or “SDI + Composite + Y/C”

For live productions:

• Output Row 1 and 2 run at the session resolution
• Output Row 3 always provides an SD output, which can either be 16:9 or 4:3 aspect

For post productions:

• For HD projects, all outputs are HD. Output consists of 3 HD-SDI and 3 HD Component
• For SD projects, output consists of 3 SD-SDI connections, 1 SD Component, 2 Composite and 2 Y/C

Specifications subject to change without notice
